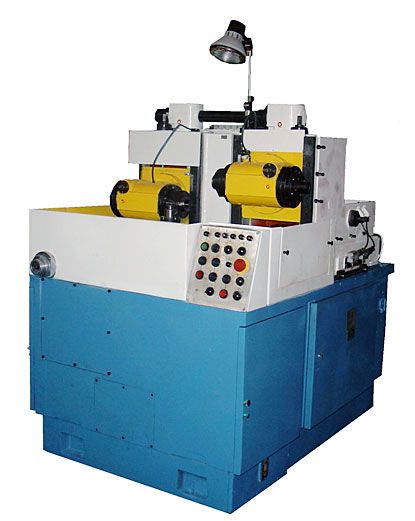

The semiautomatic machine is intended for deburring and chamfering at one or two faces of soft spur and helical cylindrical gears and spiral bevel gears with single-thread hobs (hob-snail) under conditions of all types of production.
Structural features:
- The semiautomatic machine is intended for deburring and chamfering at one or two faces of soft spur and helical cylindrical gears and spiral bevel gears with single-thread hobs (hob-snail) under conditions of all types of production.
| Maximal diameter of years to be treated, mm |
| - cylindrical |
500 |
| - bevel |
320 |
| Minimal diameter of gears to be treated, mm |
70 |
| Maximal module of gears to be treated, mm |
10 |
| Diameter of hob, mm |
70...115 |
| Number of tool spindles |
2 |
| Size of hole taper of tool spindle as per GOST 25557-82 |
Morse 5 |
| Power of electric motor of primary motion drive, kW |
1,5 |
| Total power of electric motors to be installed on the semiau-tomatic machine, kW |
2,78 |
| Overall dimensions of the semiautomatic machine, mm: |
1685x1200x1600 |
| Weight of the semiautomatic machine, kg |
3560 |
|
