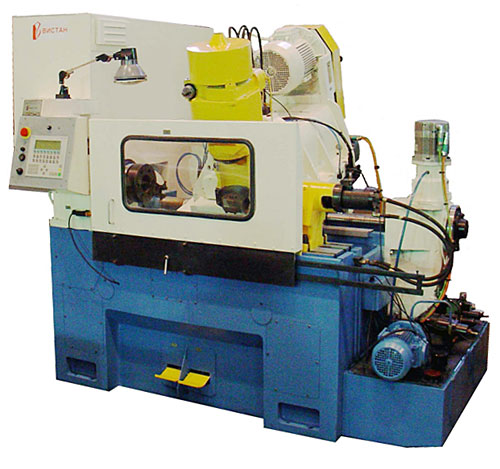

Gear spline-hobbing semiautomatic machine BC-51P, BCH- 613 NC2

main / production /

The semiautomatic machines are intended for treatment of spline shafts, spur and helical gears with modified teeth flank under conditions of job-lot and serial production. Structural features: The semiautomatic machine is made with the horizontal axis of rotation. The workpiece is fastened in spindle head and tightened up by center of tailstock. Tool is installed in the support spindle. The support is fastened to the column traveling along the saddle flat guides in radical sense of workpiece at a speed of radial feed. Hob axial feed is realized due to saddle traveling along the base flat guides. The semiautomatic machine BC-51P is equipped with relay control system and drives of SIEMENS. The semiautomatic machine is equipped with the SIEMENS programmable controller and drives. The semiautomatic machines have a centralized lubrication system. BC-51P BCH-613 NC2 Maximal diameter of blank to be installed, mm 320 Maximal length of blank to be installed, mm 710 Diameters of gears to be treated, mm 125 Maximal length of splines to be cut, mm 500 Module of gears to be treated, mm 6 Maximal teeth helix angle of gears to be treated, deg. 45 Maximal length of hobs to be installed. mm 160 Maximal diameter of hobs to be installed, mm 160 Limiting distance between the blank axis and the tool axis (for the spur gears), mm: minimal - 30 maximal - 210 Inner taper in the spindle of the machine as per GOST 25557-82 Morse 5-АТ7 Maximal hob axial travel (shifting), mm 75 Diameter of through hole in the workpiece spindle, mm 72 Range of rotational speed of hob spindle, rpm From 80 up to 400 From 63 up to 315 Range of working length (axial) feeds, mm/min From 1 up to 100 From 1,5 up to 1700 Limits of working radial feeds, mm/min   From 1 up to 500 Power of primary motion drive, KW 5,5 7,5 Number of coordinate axes to be controlled   3 Overall dimensions (length x width x height), mm 2490х1835х2160 2600х1910х1950 Weight of the semiautomatic machine, kg 5000 5200
