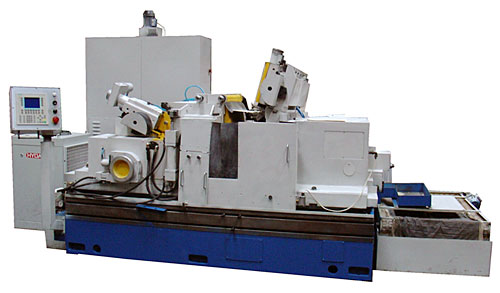

Сenterless cyindrical grinding semiautomatic machines BCA-180B NC2, 3E183BM, BCA-183B NC2, 3E184BM, BCA-184B NC2, 3E184SHV, BCA-184BK NC2, 3E185BM, BCA-185B NC2

main / production /

The semiautomatic machines are intended for grinding of smooth, stepped, conical and shaped surfaces of bodies-of-rotation type by method of plunge-cut or through-feed grinding. Workpieces of cast iron, steel, non-ferrous metals and their alloys before and after heat treatment, as well as workpieces of various nonmetallic materials with the corresponding selection of abrasive tool and work rest blade ma-terial are being ground. The special automatic machines can be produced on the base of the semiautomatic machines equipped with loading-unloading devise. Structural features: Arrangement of the machines: BCA-180B NC2 with stationary wheelhead; the rest of the machines of above range are with movable wheelhead and work-head. High productivity, accuracy treatment and quality of workpieces surface are provided by availability of reliable and precision spindles: the working spindle is in high-precision antifriction bearings, the grinding spindle is in hydrodynamic bearings. Feed of grinding wheel on the workpiece with the compensation of re-movalling of abrasive layer when dressing, as well as minor setting-up are pro-vided by electromechanical mechanism of feeds with the servodrive (except of BCA-180B NC2). The machines are equipped with systems of automatic dressing of grinding wheels (except of BCA-180B NC2). Availability of programmable controller with the electronic operator s panel enables to carry out monitoring and controlling of operation of the machines efficiently. The machines are completed with the "SIEMENS" and "MITSUBISCHI" control systems and electric drives in consultation with the Customer. ВСА-180В-NC2 (3Е180В) ВСА-183В NC2 (3E183B) ВСА-184В NC2 (3E183B) ВСА-184В KNC2 (3E184 SHV) ВСА-185В NC2 (3E185BM) Diameter of grind-ing, mm 0,5...10 2...40 4...80 5...80 8...160 Maximal length of blank to be treated, mm    - when the through-feed grinding without special attachments 58 170 260 495 360    - when the plunge-cut grinding with the nominal height of the wheel 38 155 245 320 315 Dimensions of wheels, mm:    - grinding 200х40х76 400х160х203 500х250х305 500х500х305 600х320х305    - regulating 150х40х51 300х160х127 350х250х203 350х500х203 400х320х203 Circumferential speed of grinding wheel, m/sec 35 35 35 35 35 Rotational speed of regulating wheels spindle, rpm:    - when the grinding 5-250 15-150 12-150 10-150 10-150    - when the dressing 380 300 300 300 300 Power of primary motion drive, KW 2/2,5 11 30 45 37 Total power of electric motors to be installed on the semi-automatic machine, KW 5,6 17,72 38,52 63,36 45,52 Overall dimensions of the semiautomatic machine, mm: 1570x1145x1755 2940x2145x2420 3570x2360x2420 3850x2650x2420 3840x2450x2420 Weight of the ma-chine, kg 1200 4580 6740 10860 9100 Standerd delivery set: Work rest blades and templates for the machines test. Grinding and regulating wheels for the machines test. Complete set of accessories and spare parts. Documentation. On optional order: Through-feed setting-up or cutting-in (plunge-cutting) for all the range of treatment. Attachment for the balancing of wheels out of the machine. Complete set of work rest blades for all the range of treatment.
