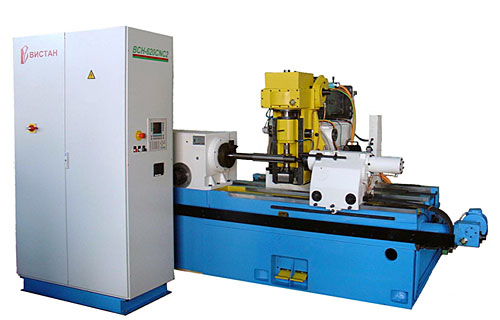

Spline-hobbing semiautomatic machine BCH-620 NC2 (CNC25)

main / production /

The semiautomatic machine is intended for cutting of spline shafts and years with hobs by method of form-generating. Has an upright arrangement, digital syn-chronous coupling as well as SIEMENS drives and control units. Structural features: The blank to be clamped into attachment which is mounted to the spindle end face of left spindle stock and clamped up with the center of right stock. The hob to be installed on arbour in support which is joined with the col-umn, travelling along the saddle, perpendicularly to base guides, i. e., in radial sense (the radial feed) Hob axial feed is realized due to saddle travelling along the flat horizontal guides of the base. To raise the hob life due to using of cutting edges all over the length the hob travels along the axis periodically (shifting). Synchronous electronic kinematic couplings instead of mechanical ones. Control from the operational control desk with the visualization of duties and parameters. Centre height above the bed, mm 300 Maximal length of the blank, mm 1000 (3000)* Diameters of gears to be treated From 20 up to 200 (From 20 up to 320)* Maximal length of splines to be cut, mm 820 (2500*) Maximal module of gears to be treated, mm 8 (10)* Maximal teeth helix angle of gears to be treated 45 Maximal length of hobs to be installed, mm 200 Maximal diameter of hobs to be installed, mm 160 Maximal travel of hob (shifting), mm 100 Number of coordinates to be controlled 5 Number of coordinates to be controlled simultaneously 3 Range of rotational speed of hob spindle, rpm From 40 up to 400 Range of working axial feeds, mm/min From 1 up to 700 Speed of saddle rapid travels, mm/min 900 Speed of column rapid travels, mm/min 500 Power of primary motion drive, KW 29,3 Total power of electric motors installed, KW 46,11 Overall dimensions (length x width x height), mm 3634х2189х1963 Weight of the semiautomatic machine (with stand alone units and electrical equipment), kg 9800 ( )* - to special order.
