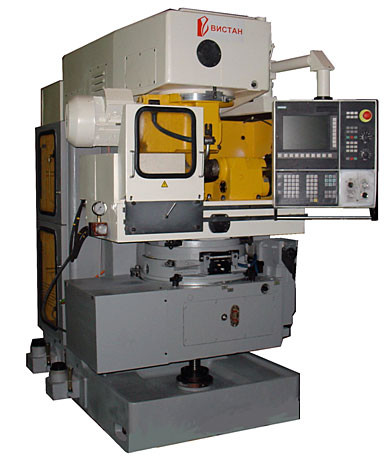

The semiautomatic machines are intended for finishing treatment of teeth of soft cylindrical gears of external gearing under conditions of serial an mass production.
Structural features:
- It is provided the possibility of "barrel" and tapered teeth making on the semiautomatic machine.
- Table rotary guides provides the possibility of shaving with longitudinal, diagonal and cross feeds of workpiece. There is possibility of setting-up for in-feed shaving.
- To make barrel and tapered teeth there are synchronous electronic kine-matic couplings in stead of mechanical ones on the semiautomatic machine BCH-732 CNC2.
- To improve the quality of teeth machined the possibility of operation with unloading rebound before the calibration end is provided.
- For service convenience the centre distance adjustment and clamping-unclamping of gear-shaving cutter head are mechanized.
- The semiautomatic machines are equipped with the SIEMENS electrical equipment.
- The BCH-732 NC2 has a programmable controller and an operator's panel.
- The BCH-732 CNC2 has a Sinumerik 802D.
| Maximal treatment diameter, mm |
320 |
| Maximal length of blanks, mm |
500 |
| Maximal face width, mm |
150 |
| Module, mm |
8 |
| Maximal nominal pitch diameter of gears-shaving cutter, mm |
250 |
| Maximal width, mm |
40 |
| Fit diameter of gear-shaving cutter, mm |
63,5 |
| Maximal angular displacement of gear-shaving cutter head from the mid-position, deg. |
30 |
| Maximal longitudinal travel of table, mm |
150 |
| Maximal cross travel of table, mm |
25 |
| Maximal vertical travel of table, mm |
165 |
| Distance between the tool spindle axis and the workpiece spindle axis, mm |
120...285 |
| Maximal angular displacement of table's guides from the mid-position. deg |
-30...+90 |
| Maximal value of template travel from the zero position, mm |
15 |
| Maximal angular displacement of template, deg. |
45 |
| Range of rotational speed of tool spindle, rpm |
56...360 |
| Range of speeds of table horizontal travels, mm/min |
15...300 |
| Range value of the stock allowed to be removed, mm |
| - when the normal |
0,4 |
| - when the in-feed shaving |
0,3 |
| Range of values of unloading rebound, mm |
0,01...0,04 |
| Total power, kW |
6,7 |
| Overall dimensions, mm |
2200х1750х2120 |
| Weight of the semiautomatic machine, kg |
4700 |
The special machines can be produced on the base of the semiautomatic machines to treat the particular part with manual or automatic loading; as well as machines with extended standard or shortened table, for shaving of gears of internal gearing.
|
