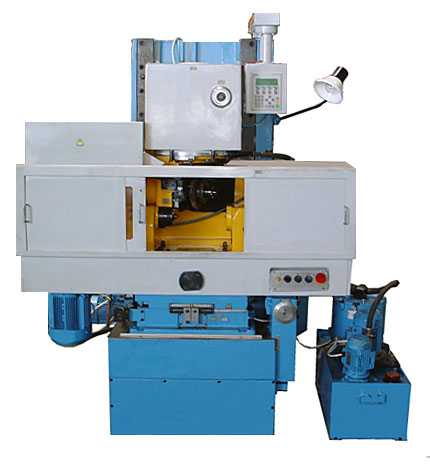

The semiautomatic machine is intended for finishing treatment of hardened short spline shafts, spur and helical cylindrical gears with abrasive and diamond-tipped gear hones by method of form-generating, with isolated gear train using longitudinal and diagonal feeds.
Structural features:
- Gear honing on the machine is possible when the radial and circumferential loading after "without reverse" method and with reverse of rotation of workpiece and hone to provide the improving of surface roughness after the head treatment and the noise abatement.
- It is possible to treat gears with barrel-shaped teeth.
- The semiautomatic machine is equipped with the SIEMENS programmable controller and drives.
| Maximal diameter of gears to be treated, mm |
320 |
| Module of gears to be treated, mm |
1,5...8 |
| Maximal face width of gears to be treated, mm |
125 |
| Maximal teeth helix angle, mm |
45 |
| Maximal length of workpiece to be installed, mm |
500 |
| Maximal distance between the toothing centre and the face of workpiece shaft (for the shaft-pinions), mm |
250 |
| Maximal nominal diameter of gear hone to be installed, mm |
250 |
| Maximal width of hone to be installed, mm |
40 |
| Fir diameter of spindle end to fasten a tool, mm |
63,5 100 |
| Length of table stroke, mm |
140 |
| Distance between the axis of hone spindle and the axis of workpiece spindle, mm |
130...285 |
| Distance between the base of the machine an the workpiece axis, mm |
1060 |
| Limits of rotational speed of tool spindle, rpm |
160...1000 |
| Limits of rotational speed of left stock, rpm |
250...1250 |
| Limits of table feeds, mm/min |
50...400 |
| Maximal value radial loading, N |
630 |
| Maximal value of circumferential loading, N |
160 |
| Maximal angular displacement of honing tool, deg |
25 |
| Total power, kW |
10,4 |
| Overall dimensions, mm |
1600х1000х2200 |
| Weight of the semiautomatic machine with the electrical equipment and accessories, kg |
3150 |
|
