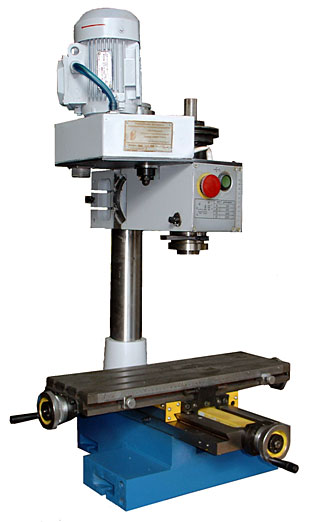

The universal bench-type machine is intended for metal and plastic mill-ing/drilling work. To individual consumers being related to metal and other mate-rials working.
Structural features:
- Relatively large compound table with the ground adjustable "dovetail" guideways.
- Quill is installed for in-feed and for a depth with the help of the drilling handwheel and the flywheel, according to dial, when the milling.
- Changing of revolutions number with the help of the throw over V-belt.
- Adjustable stops of drilling depth and table's travel.
- Upright spindle head to be rotated by 90 degrees clockwise and by 45 de-gree counterclockwise.
- Wall mounted electric cabinet with the device of protective deenergizing to provide the safety.
| Maximal diameter of drilling, mm |
16 |
| Length of table working surface, mm |
580 |
| Width of table working surface, mm |
180 |
| Inner taper of spindle |
Morse 3 |
| Length/travel of table, mm |
320 |
| Cross travel of table, mm |
160 |
| Limits of spindle rotational speed, rpm |
250; 500; 1000; 2000 |
| Distance between the spindle face and the table working surface with the slided-in quill, mm |
| - maximal |
50 |
| - minimal |
340 |
| Quill stroke, mm |
100 |
| Rotation of spindle head: |
| - clockwise |
90 |
| - counterclockwise |
45 |
| Power of electric motor of spindle rotation drive, kW |
0,75 |
| Overall dimensions of the machine, mm |
716x808x975 |
| Weight of the machine, kg |
195 |
Accessories to be come complete with machine:
- Milling cutter 17026.
- Arbor.
- Strap clamp.
- Bushings as per GOST 18258.
- Drift.
- Draw-in bolt.
|
