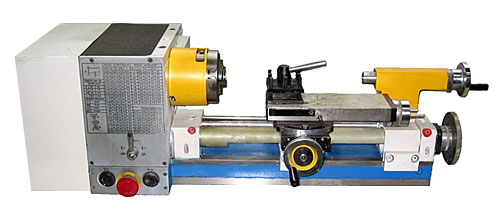

The universal bench-type lathe is intended for various kinds of metal work: external and internal turning, cutting of right-hand thread and left-hand thread, milling, drilling. To individual consumers being related to metal working.
Structural features:
- Extremely easy servicing of the machine for complete machining of your parts.
- Retooling from turning to drilling/milling during few minutes.
- Precision spindle bearings to provide high accuracy of rotation.
- Easy changing of revolutions number and low-noise operation to be provided by texrope drive.
- Wall mounted electric cabinet with the device of protective deenergizing to provide the safety.
| Maximal diameter of blanks to be installed, mm |
| - above bed |
200 |
| - above carriage |
125 |
| Maximal length of blank to be installed in the centers, mm |
350 |
| Fit hole of headstock spindle |
Morse 3 |
| Fit hole of tailstock quill |
Morse 2 |
| Maximal diameter of bar to be passed through the hole in spindle, mm |
12 |
| Limits of pitches of threads to be cut |
0,2...5,0 |
| Rotational speed of spindle, rpm |
250, 500, 1000, 2000 |
| Value of carriage working feeds, mm/rev |
0,08...0,16 |
| Power of electric motor of spindle drive, kW |
0,75 (380V) |
| Overall dimensions, mm |
1070x600x365 |
| Weight of the machine, kg |
174 |
| Weight of the machine with the attachments, kg |
232 |
| Radial run-out of spindle, mm |
0,01 |
| Axial run-out of spindle, mm |
0,008 |
Accessories to be come complete with machine:
- Set of change gears.
- Bushings as per GOST 1858-72.
- Wrenches as per GOST 2839-80, GOST 11737-74, screw-drivers GOST 17199-88.
- Set of single-point tools (10x10, 12x12)
- Chuck 16-B18 GOST 8522-79 (125 mm); milling cutter 2220-0044 GOST 17025-71.
- Centres 7032-0018 Morse 2, 7032-0023 Morse 3.
- Vice, lathe dog, rotating centre, stud, liner, template, arbor.
|
