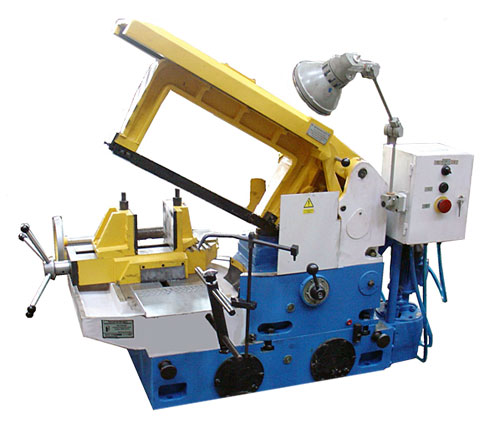

The hacksaw-cutting-off machine is intended for metal cold cutting-off. It is possible to cut-off in the plane to be perpendicular to the blank axis, and at an an-gle of up to 45o.
Structural features:
- Precise cutting-off: stable design excepts the run-off of the hacksaw blade.
- The base design makes it possible to install the saw frame and to cut-off at an angle of up to 45o.
- The machine is equipped with the vice with the replaceable jaws to cut-off the metal of various range of products: round, square, right-angled.
- Saw frame is actuated by electric motor.
- Lifting and lowering of saw frame are actuated by hydraulic drive.
| Maximal diameter of blank to be installed, mm: |
| - when the cutting-off at an angle of 90o |
250 |
| - when the cutting-off at an angle ofo |
140 |
| Maximal length of blank to be installed according to stop, mm |
350 |
| Length of hacksaw blade as per GOST 6645-86, mm |
450 |
| Maximal stroke length of saw frame, mm |
150 |
| Maximal swivel angle of saw frame in a horizontal plane, deg. |
45 |
| Number of saw frame double strikes per minute |
85; 110 |
| Power of saw frame electric motor, kW |
1,5 |
| Overall dimensions of the machine (without attached equip-ment), mm |
1510x965x870 |
| Weight of the machine (without attach equipment), kg |
1120 |
|
